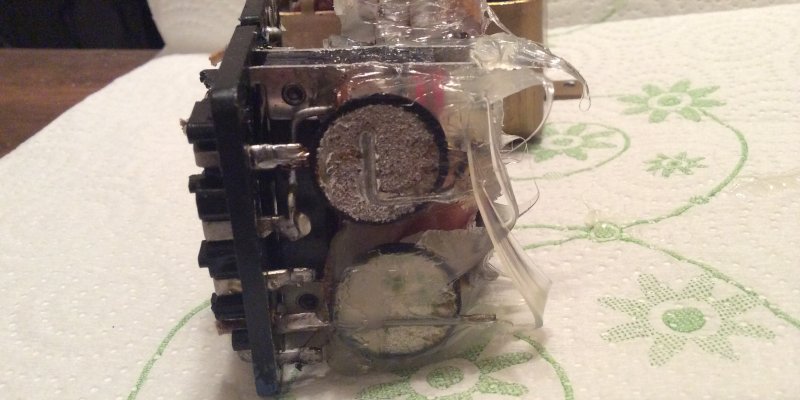

I of course was forced my curiosity to open up the box of electronics and see what was inside...

For your entertainment... There you go.

photo photo photo photo

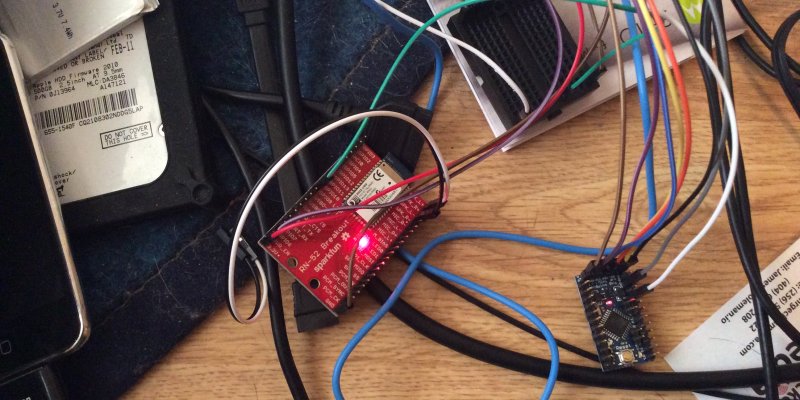

Time to hook up the Arduino to the computer and program it.

I realized I never said how I sent commands to the Bluetooth board. All I hooked up was the ground to the ground board which goes to the battery, and the RX/TX cables to the appropriate place on the bluetooth board.

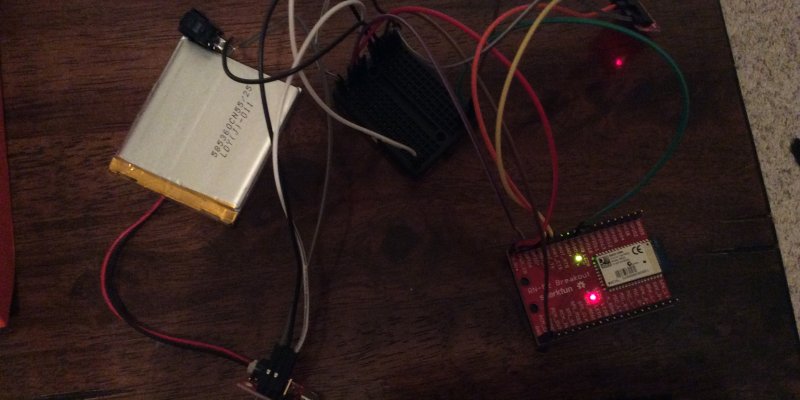

I hooked up the speaker and amplifier last night to test the bluetooth board, and it works. Pretty loud.

https://plus.google.com/+JamesColeman/posts/Yvq4d2i2qTg?pid=5956530417068648258&oid=104359338500189725198

Everything hooked up. Just got to solder together that Micro Controller (Arduino) and hook it up/play with it.
